Technical parameters, paper grammage, flute constructions, and burst strength specifications across our manufactured range.
Get our official 18-page technical product catalogue (4.5 MB PDF) covering corrugated boxes (2-9 Ply), PackProSol B2B platform solutions, protective packaging, tapes, courier bags, security seals, and enterprise MOQ pricing matrices.
Point smartphone camera to scan & download the Master Catalogue instantly on mobile.
HD Preview
Manufactured using high-BF virgin and semi-virgin kraft paper liners with precision corrugation flute profiles (B, C, E, BC, and AAA flute). Designed for multi-tier warehouse pallet stacking.
| Parameter | Specifications | Standard Reference |
|---|---|---|
| Construction | 2-Ply (Rolls), 3-Ply, 5-Ply, 7-Ply, 9-Ply | IS 2771 / ASTM D4727 |
| Paper Grammage (GSM) | 120 GSM to 350 GSM Kraft / White Duplex | High Burst Factor (16BF – 35BF) |
| Flute Profiles | B-Flute (3mm), C-Flute (4mm), E-Flute (1.5mm), BC (7mm) | Optimal Rigidity & Stacking |
| Bursting Strength | 14 kg/cm² up to 32 kg/cm² | Digital Mullen Tester Validated |
| Custom Printing | 1 to 4 Colors Water-Based Flexo / Screen | Eco-Friendly Non-Toxic Inks |
HD Preview
Co-extruded multilayer LDPE bags engineered for e-commerce, banking, and courier logistics. Features an aggressive permanent hot-melt adhesive strip that destroys the lip upon any unauthorized opening attempt.
| Parameter | Specifications | Performance Feature |
|---|---|---|
| Film Thickness | 50, 60, 70 & 80 Microns | High Tear & Puncture Resistance |
| Adhesive Seal | Hot-Melt PSA with Silicon Release Liner | Permanent Void Destruction Seal |
| Inner Layer | High-Opacity Black / Charcoal Inner | 100% Confidential Non-Transparent |
| POD Pocket | Transparent Airway Bill / Invoice Jacket | Barcode Scanner Readable |
| Standard Sizes | 6x8", 8x10", 10x12", 12x14", 14x16", 16x20" | Custom dimensions available |
HD Preview

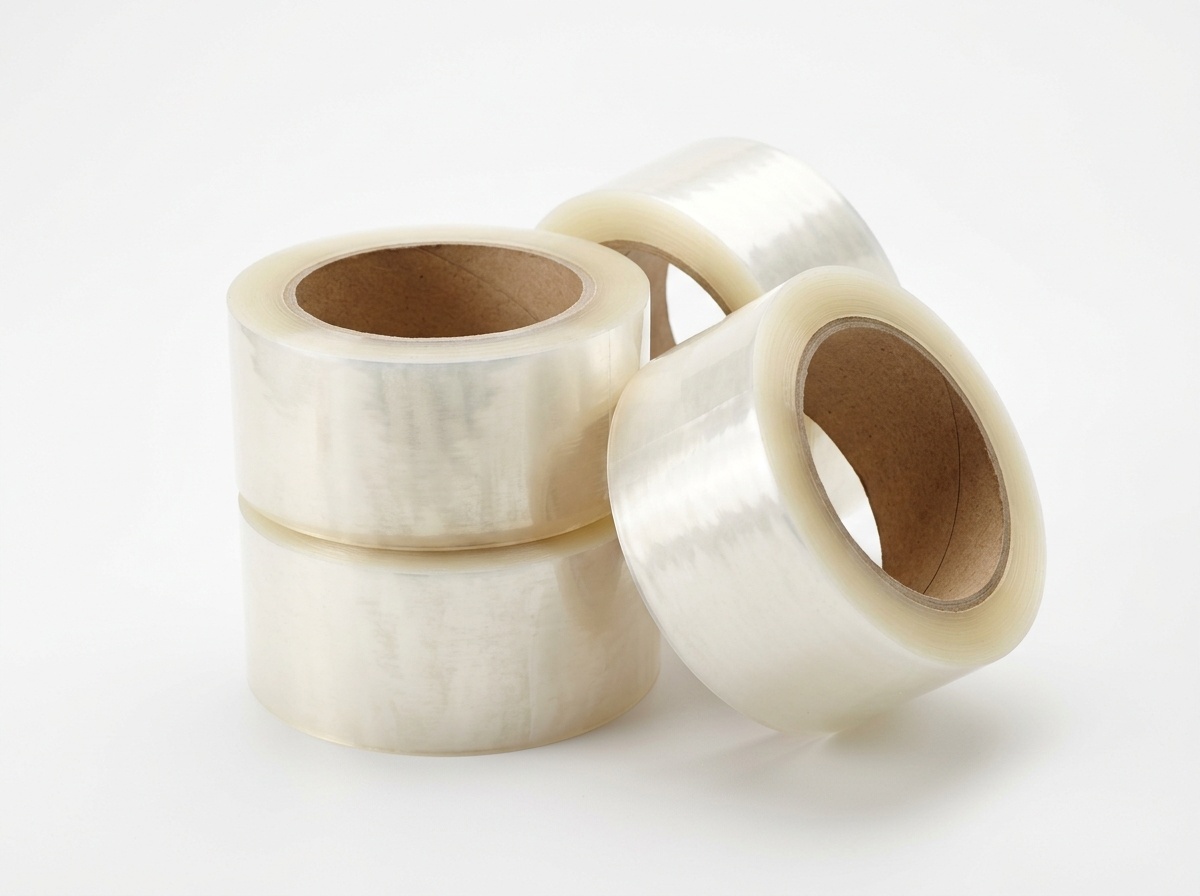

Biaxially Oriented Polypropylene (BOPP) film coated with emulsion acrylic or hot-melt adhesive. Delivers instant shear grab and high tensile holding strength on virgin and recycled kraft cartons.
| Parameter | Specifications | Application Context |
|---|---|---|
| Total Thickness | 40, 42, 45, 48 & 52 Microns | Medium & Heavy Carton Sealing |
| Available Widths | 24mm (1"), 48mm (2"), 72mm (3") | Standard dispenser compatible |
| Colors | Transparent Clear, Brown Kraft, White, Red, Blue | Identification & Security |
| Custom Logo Print | 1 to 3 Color Gravure Surface / Reverse Printing | Brand Identity & Anti-Theft |
| Roll Lengths | 50m, 65m, 100m, 650m (Machine Rolls) | Manual or Automatic Taping Lines |
HD Preview

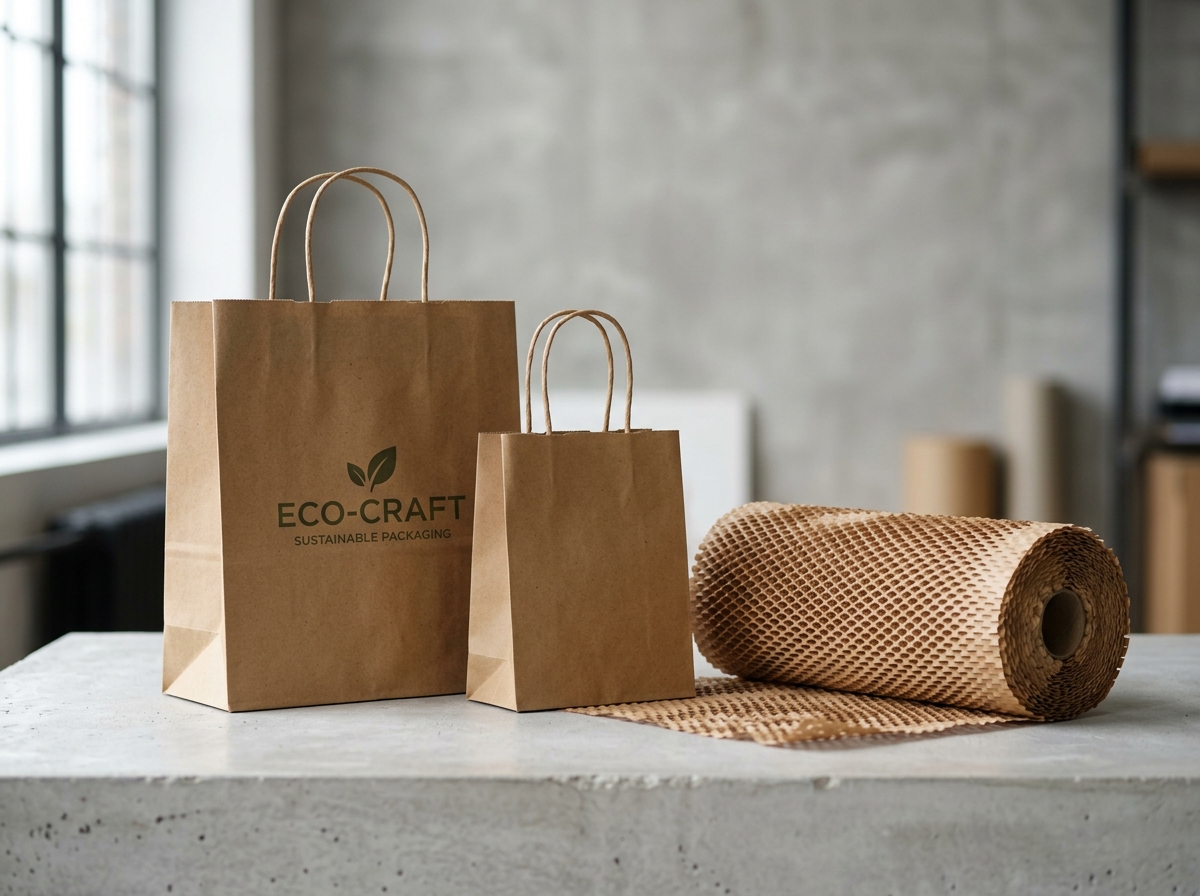

100% recyclable virgin kraft shopping bags with twisted paper handles, expanding honeycomb protective wrap, and shock-absorbing air bubble rolls for cosmetics, glassware, and electronics.
| Parameter | Specifications | Eco Attribute |
|---|---|---|
| Kraft Bag GSM | 90 GSM to 180 GSM Kraft | 100% FSC Certified Biodegradable |
| Honeycomb Wrap | 80 GSM Expanding Hexagonal Mesh Roll | Zero Plastic Bubble Alternative |
| Bubble Wrap | 10mm Bubble Diameter / 40–120 GSM | Anti-Static ESD grades available |
| Carrying Capacity | Up to 12 kg with Reinforced Bottom Gusset | Food-safe water-based adhesives |
HD Preview
High-tensile cast LLDPE stretch film for automated pallet wrappers, paired with sequential laser-numbered security seals, padlocks, and gold loan tamper envelopes.
| Parameter | Specifications | Regulatory Standard |
|---|---|---|
| Stretch Film Resin | 100% Virgin Cast LLDPE (Linear Low Density) | High Optical Clarity & Puncture Proof |
| Thickness Microns | 17µ, 23µ, 29µ, 35µ (Microns) | Up to 300% Pre-Stretch Capability |
| Security Seal Locking | Stainless Steel Spring-Lock Insert | Pull-tight adjustable strap |
| Identification | Permanent Laser Etched Serial Numbers & 2D QR | ISO 17712 Freight Standard |
HD Preview

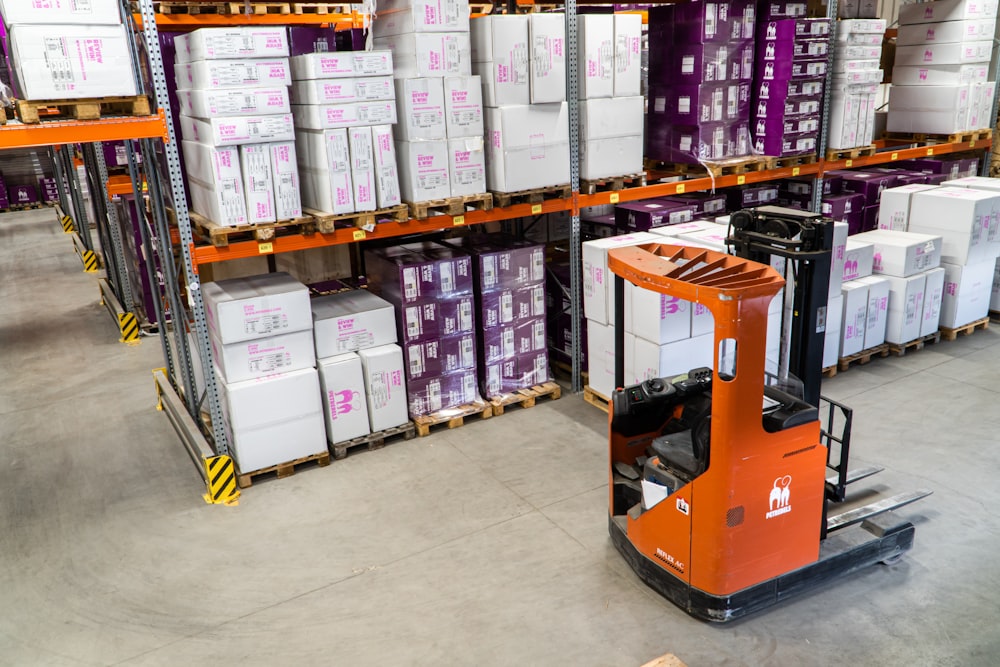

Engineered cold-rolled high tensile steel racking systems for heavy-duty warehouse storage. Designed for maximum vertical volumetric utilization, safety, and heavy unit loads.
| Parameter | Specifications | Warehouse Benefit |
|---|---|---|
| Load Capacity | 500 kg to 3,000 kg per level (Customizable) | Heavy industrial unit loads |
| Material Structure | IS 2062 Cold Rolled Steel Beams & Uprights | High tensile yield strength |
| Surface Finish | Pure Polyester Powder Coated 70–90 Microns | Rust-free anti-corrosive life |
| Beam Adjustability | 50mm pitch height adjustment with safety locks | Flexible SKU height accommodation |
HD Preview
Manufactured from high-grade seasoned Pinewood, Rubberwood, and Jungle Hardwood. Kiln-dried and heat treated to ISPM-15 international phytosanitary standards for global export shipping and heavy industrial storage.
| Parameter | Specifications | Compliance / Industry Standard |
|---|---|---|
| Wood Timber Grade | Pinewood, Rubberwood, Jungle Hardwood | Kiln-Dried Moisture Content <18% |
| Entry Construction | 2-Way Flush Deck / 4-Way Block & Stringer Pallet | Forklift & Hand Pallet Truck Friendly |
| Phytosanitary Certification | ISPM-15 Heat Treatment (HT Stamp Verified) | 56°C Core Temp for 30 Mins (Export Approved) |
| Load Carrying Capacity | Static: 1,500 kg to 5,000 kg | Dynamic: 1,000 kg to 2,500 kg | Heavy Racking & Multi-Tier Stacking |
| Standard Sizes | 1200 x 1000 mm, 1200 x 800 mm (Euro), Custom Sizes | Standard Container & Truck Bed Loading |
HD Preview
Comprehensive range of ISPM-15 certified wooden pallets, heavy-duty HDPE plastic pallets, stackable plastic storage crates, and water-proof Polypropylene (PP) flute corrugated boxes for automotive and retail logistics.
| Product Category | Key Specs & Construction | Primary Application |
|---|---|---|
| Wooden Pallets | ISPM-15 Heat Treated Pine / Hardwood (2-Way & 4-Way) | Export shipments & heavy logistics |
| Plastic Pallets | HDPE Virgin Material, Static: 4 Ton / Dynamic: 1.5 Ton | Clean room, pharma & food processing |
| Plastic Crates | High-Impact Polypropylene stackable / nestable with lids | Auto components & retail supply chain |
| PP Flute Boxes | 2mm to 10mm Polypropylene hollow sheet boxes | Returnable closed-loop transit packaging |
HD Preview

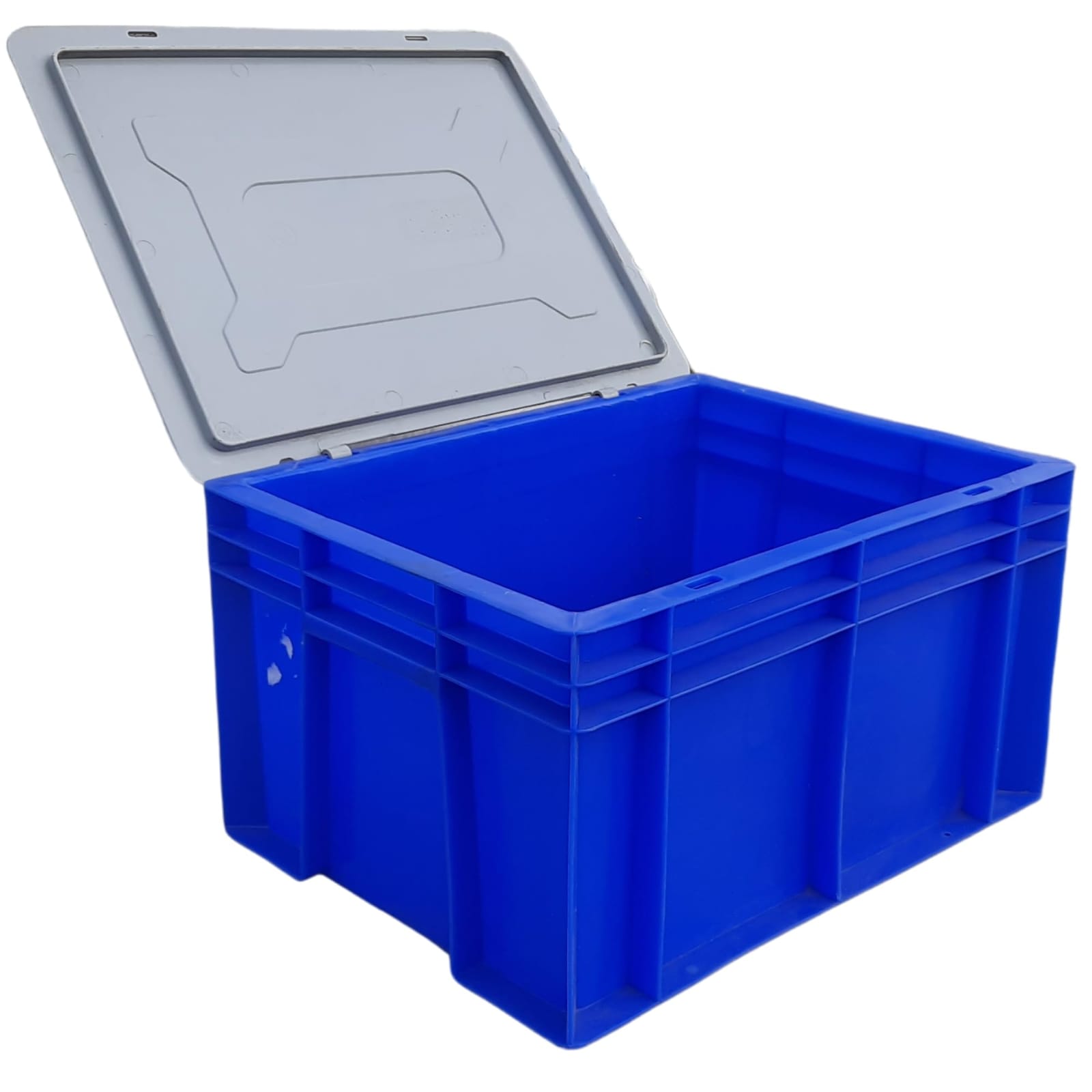

High-grade 100% virgin HDPE stackable industrial storage crates with integrated or detachable locking lids. Engineered for closed-loop supply chains, automotive component movement, electronics assembly, and organized warehouse storage.
| Feature / Specification | Technical Description | Industrial Benefit |
|---|---|---|
| Material Composition | 100% High-Density Polyethylene (HDPE) / PP Virgin Grade | High impact strength, oil & chemical resistant |
| Lid System | Hinged Interlocking Lid / Snap-Fit Detachable Lid | Tamper-evident, dust-proof & stack security |
| Stacking & Nesting | 1+5 Vertical Stacking Load Capacity (Up to 250 kg total stack) | Maximizes warehouse floor & racking space |
| Standard Sizes Available | 600x400x325mm, 500x350x275mm, 400x300x220mm (Custom sizes on request) | Fits standard ISO plastic pallets & rack shelves |
HD Preview

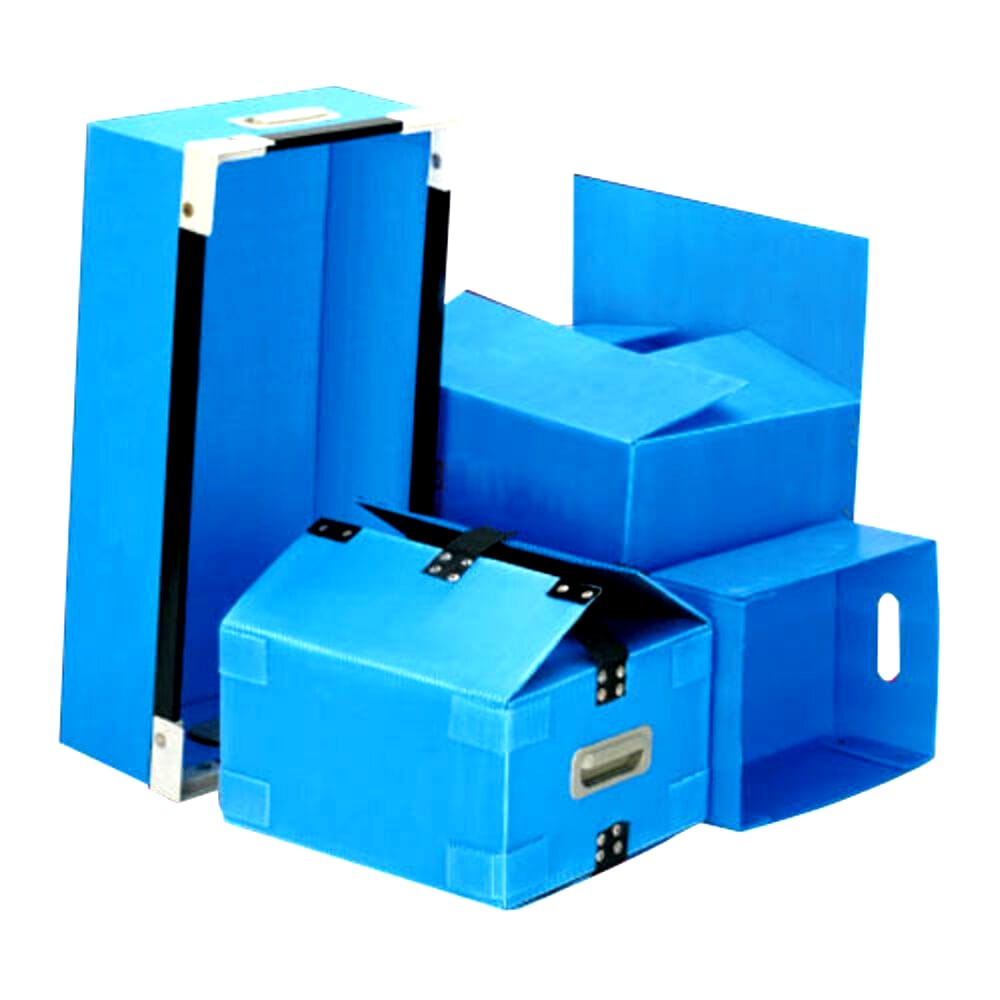

Engineered twin-wall polypropylene hollow fluted sheet boxes designed as a lightweight, 100% waterproof, and reusable alternative to traditional paper corrugated cartons. Custom manufactured with ultrasonic spot welding, corner edge protectors, velcro flaps, and ESD anti-static treatment for automotive, electronics, and pharmaceutical plant logistics.
| Property / Feature | Technical Specification | Application Benefit |
|---|---|---|
| Sheet Thickness & GSM | 2.0 mm to 10.0 mm (250 GSM up to 2000 GSM) | High tear & puncture resistance for heavy loads |
| Joint Construction | Ultrasonic Spot Welded / Heavy Plastic Rivets | 100% seam integrity with 50+ trip return lifespan |
| Surface Treatment | Corona Treated (44 Dynes) / Conductive ESD Option | Screen-printed graphics & sensitive electronics safety |
| Environmental Resistance | 100% Waterproof, Washable, Oil & Chemical Proof | Zero degradation in wet or greasy plant environments |
HD Preview

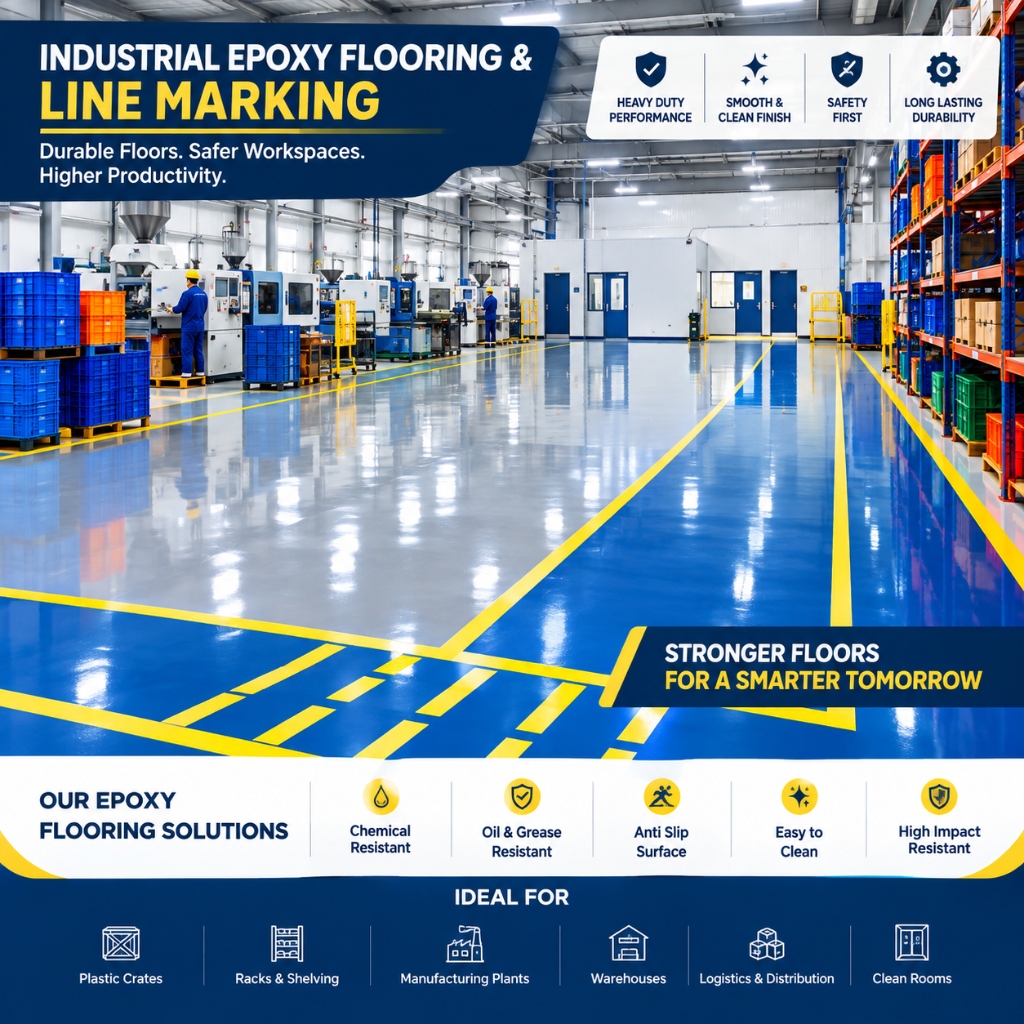

Designed to seamlessly complement your heavy-duty Storage Racks and stackable Plastic Crates, our industrial epoxy flooring and 5S safety line marking solutions create a clean, safe, and organized warehouse environment. Built to withstand high-impact forklift movement, oil spills, and chemical exposure.
| Property | Technical Parameter | Industrial Benefit |
|---|---|---|
| Coating Thickness | 1.5 mm to 4.0 mm Self-Leveling Epoxy Layer | Heavy forklift traffic durability |
| Compressive Strength | > 65 N/mm² (High Load Resistance) | Prevents concrete cracking & dusting |
| Chemical Resistance | Resistant to Acids, Oils, Solvents & Alkalies | Easy maintenance & washdown |
| Safety Line Marking | Polyurethane High-Visibility Yellow & Blue Lanes | EHS & 5S Safety Compliance |

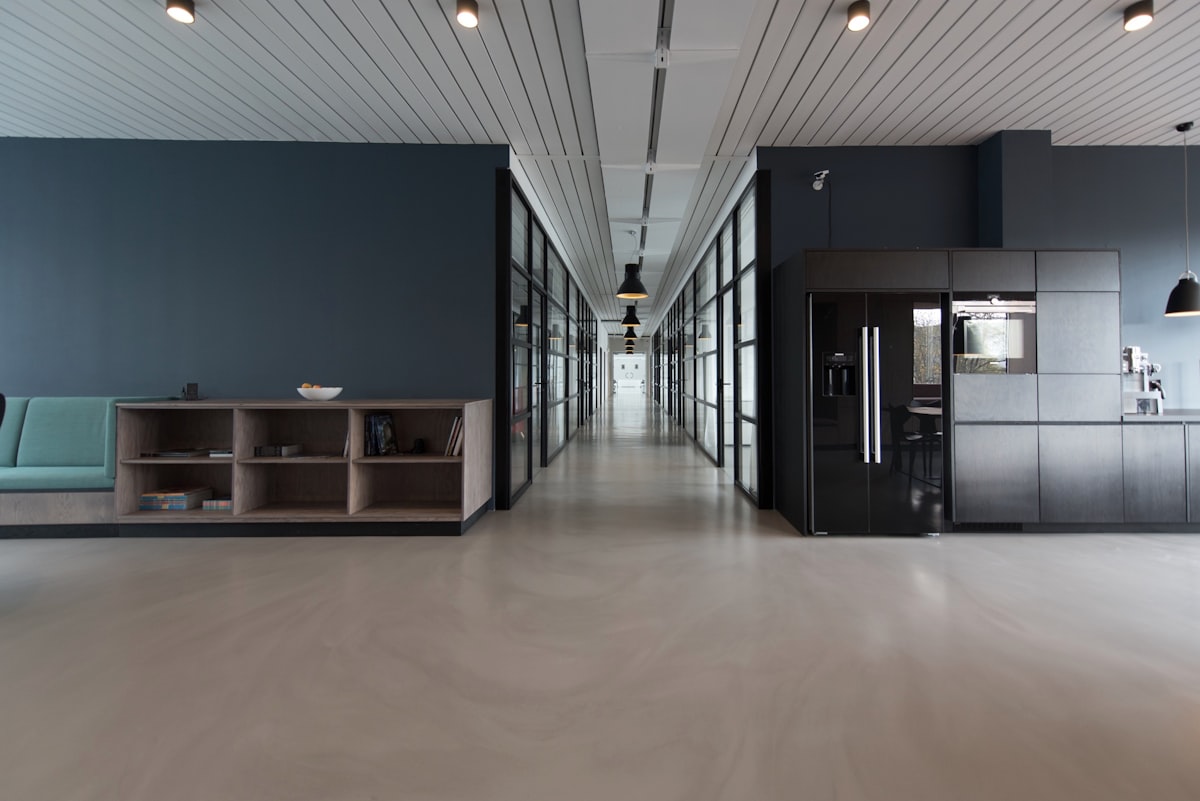

End-to-end site execution from heavy industrial plant flooring & racking setup to high-end corporate office interior fitouts across Bengaluru.
HD Preview
High-grade poly air bubble rolls engineered to absorb shock, vibration, and impact during courier transit. Available in standard clear, anti-static ESD pink, and heavy-duty 3-layer laminated options.
| Parameter | Specifications | Performance Feature |
|---|---|---|
| Bubble Diameter | 10mm (Standard) & 20mm (Jumbo) | High Air Retention Bursting Resistance |
| Grammage Range | 40 GSM to 120 GSM | Flexible Light Duty to Industrial Heavy Duty |
| Special Variants | Anti-Static ESD Pink & Laminated Kraft/Alu | Electronic Component Static Shielding |
| Standard Roll Width | 0.5 Meter, 1.0 Meter & 1.5 Meter | Custom pre-cut sheets & pouches available |
HD Preview
Complete packaging dispatch kits containing heavy-duty corrugated cartons, co-extruded courier flyers, high-tack BOPP sealing tapes, bubble wrap cushioning, and strapping accessories engineered for enterprise logistics.
| Parameter | Specifications | Performance Feature |
|---|---|---|
| Strap Width | 9mm, 12mm, 15mm & 19mm | Compatible with standard tensioners & sealers |
| Break Strength | 120 kgf to 550 kgf | High shock absorption retention |
| Material Grade | Virgin PP & High-Tensile Embossed PET | Rust-free, weather resistant, recyclable |
HD Preview
Heavy-duty 2.5Ton and 3.0Ton hydraulic hand pallet jacks featuring leak-proof integrated hydraulic pump valves, heavy C-channel steel forks, and smooth tandem Polyurethane/Nylon rollers.
| Parameter | Specifications | Performance Feature |
|---|---|---|
| Load Capacity | 2500 kg (2.5T) & 3000 kg (3.0T) | Heavy industrial load moving rating |
| Fork Dimensions | 1150 x 550 mm & 1220 x 685 mm | Standard Euro & ISO pallet compatibility |
| Load Rollers | Dual Tandem PU / Nylon Wheels | Low noise, non-marking floor protection |
